Sv/250t Vertical Sump Pump

Sv/250t Vertical Sump Pump

CNSME® SV/250T (250TV-SP) pumps are vertical, centrifugal slurry pumps submerged in sump to work
Model:
没有此类产品
sales@slurrypump.co
Description

1.Discription of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:



CNSME® SV/250T (250TV-SP) pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type SP pump are made of abrasion-resistant metal. All parts of type SP(R) pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

Sv/250t Vertical Sump Pump A05 High Chrome Alloy Materials 0

Vertical slurry pump standard

1. Standard pump into the liquid depth is 1.2 meters , the highest speed is 1150 r/min.

2.When pump into the liquid depth of 0.9 m, the highest speed is 1500 r/min,

3. When pump into the liquid depth of 1.5 m, the highest speed is 1000 r/min,

4. Standard dipping into the liquid depth is 0.9 meters. Allowed the most high power is15 KW



Function
1). A05 materials.
2). CNSME
® SV/250T (250TV-SP) type sump pump parts, immersed in liquid rubber lining.
3). Different length of the pump drive shaft or inhaled could be selected
4). V-belt drive, direct drive, and flexible coupling.
5). Bearing to lubricate oils.
6). use of variable-speed, the best condition in the pump operation, long service life, run- effective,meet many bad transportation conditions.





2.Specifications of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:



Type

Size

Frame

Impeller:SV65206A05

Shaft Seal

Frame Rating

(kw)

Normal Max Speed

(r/min)

Max Passage Size

(mm)

SV

250

T

5 Open Type Rubber Vans,

Diameter:605mm

Gland Packing,

Expeller,

Mechanical Seal

200

750

65



SV Series Vertical Metal Sump Pump Specifations & Prices









Pump
Model

S×D
(mm)

Allowable
Max. Power
(kw)

Material

Clear Water Performance

Impeller

Pricing

Capacity Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

Length
Shaft (mm)

No. of
Vanes

Vane Dia.
(mm)

Weight
(kg)

Impeller

m3/h

l/s

SV/40P

80×40

15

A05 High Chrome

19.44-43.2

5.4-12

4.5-28.5

1000-2200

40

900

5

195

275

SV/65Q

120×65

30

23.4-111

6.5-30.8

5-29.5

700-1500

50

1200

290

420

SV/100R

175×100

75

54-289

15-80.3

5-35

500-1200

56

1500

390

850

SV/150S

240×150

110

72-504

20-140

10-35

500-1000

56

1800

480

1720

SV/250T

300×200

200

A05 High Chrome

261-1089

72.5-302.5

7.5-33.5

400-750

60

1800

5

605

3100



3.Materials of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:



Part Description Material
Casing A05 High Chrome Alloy
Impeller A05 High Chrome Alloy
Back Liner A05 High Chrome Alloy
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

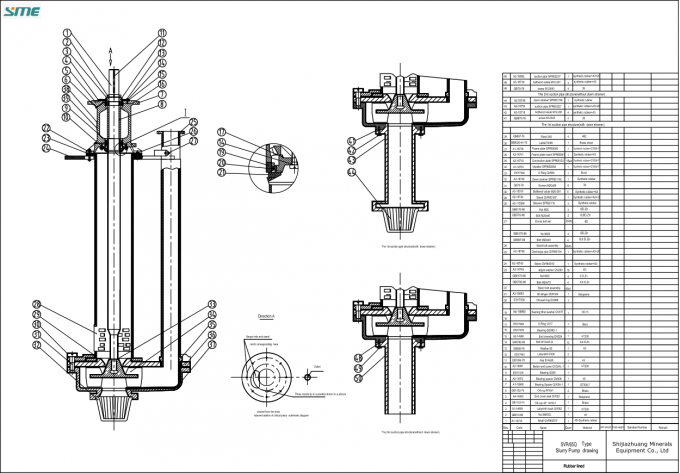

4.Drawing of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:



65QV - SPR Corrosive Slurry Sump Pumps Submersible Sump Pumps



5.Performance Curve of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:

Sv/250t Vertical Sump Pump A05 High Chrome Alloy Materials 2

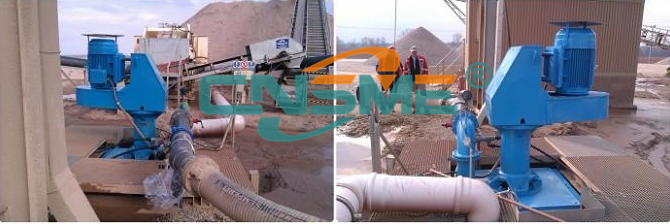

6.CNSME® SV/250T (250TV-SP) Vertical Sump Pump On-Site Applications:



Sv/250t Vertical Sump Pump A05 High Chrome Alloy Materials 3

7. Customer Order of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:



Sv/250t Vertical Sump Pump A05 High Chrome Alloy Materials 4
