High Speed Vertical Sump Pump
Liners – Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.
Impeller – Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush – Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Shaft seal
Expeller Seal(Centrifugal Seal) – Available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited.
Stuffing Box – Gland sealing with packing and lantern ring.
Specifications:
| Model | SV-100R |
| Capacity | 54-289m3/h |
| TDH | 5-35m |
| Rated Motor Power | 75Kw |
| Speed | 500-1200r/min |
| Max. Efficiency | 56% |
| Standard Shaft Length | 1500mm |
Materials of Construction:
| Part Description | Material |
| Casing | A05- High Chromium Alloy |
| Impeller | A05- High Chromium Alloy |
| Back Liner | A05- High Chromium Alloy |
| Shaft | Carbon Steel |
| Mounting Plate | Mild Steel |
| Strainers | Grey Iron |
Material: High Chrome Alloy A05
Material Chemical Requirements, Weight%
| Description | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness |
| A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 27 | ≤0.8 | ... | 0.062 | ... | 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC |
Performance Curve:
| Type | Size | Frame | Impeller: SP4206A05 | Shaft Seal |
Frame Rating (kw) |
Normal Max Speed (r/min) |
Max Passage Size (mm) |
| SV | 40 | P | 5 Open Type Metal Vans, Diameter:195mm | Gland Packing, Expeller, Mechanical Seal | 15 | 2200 |
12 |
| SV SP Vertical Metal Sump Pump Specifations & Prices | ||||||||||||
| Pump Model |
S×D (mm) |
Allowable Max. Power (kw) |
Material | Clear Water Performance | Impeller | |||||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
Length Shaft (mm) |
No. of Vanes |
Vane Dia. (mm) |
Weight (kg) |
|||||
| Impeller | m3/h | l/s | ||||||||||
| SV/40P | 80×40 | 15 | Metal (A05) |
19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 | 285 |
| SV/65Q | 120×65 | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | 432 | ||
| SV/100R | 175×100 | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 1500 | 390 | 867 | ||
| SV/150S | 240×150 | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 1800 | 480 | 1737 | ||
| SV/200S | 320×200 | 110 | 189-891 | 152.5-247.5 | 6.5-37 | 400-850 | 64 | 2100 | 550 | 2800 | ||
| SV/250T | 200 | 180-1080 | 50-300 | 10-35 | 400-750 | 60 | 2400 | 605 | 3700 | |||
| SV/300T | 200 | 180-1440 | 50-400 | 5-30 | 350-700 | 62.1 | 2400 | 610 | ||||
Material of Metal Lined Vertical Slurry Pump:
| No | Parts name | Materials |
| 1 | Shaft | 4140 High Tensile Steel* |
| 2 | Bearing | SKF/Timken(Standard) |
| 3 | Bearing Housing | HT250 |
| 4 | Bearing spacer | 420 Stainless Steel |
| 5 | Bearing | SKF/Timken(Standard) |
| 6 | Shim | 20# Stainless steel |
| 7 | Column | 20# Stainless steel |
| 8 | Strainer | QT500-7 |
| 9 | Back liner | 27.5% UltraChrome Alloy |
| 10 | Impeller | 27.5% UltraChrome Alloy |
| 11 | Pump casing | 27.5% UltraChrome Alloy |
| 12 | Lower strainer | QT500-7 |
| 13 | Discharge pipe | 20# Stainless steel |
| 14 | Flushing pipe | Q235 Carbon steel |
| 15 | Coupling | 45# Steel |
| 16 | Middle supporting parts | 20# Stainless steel |

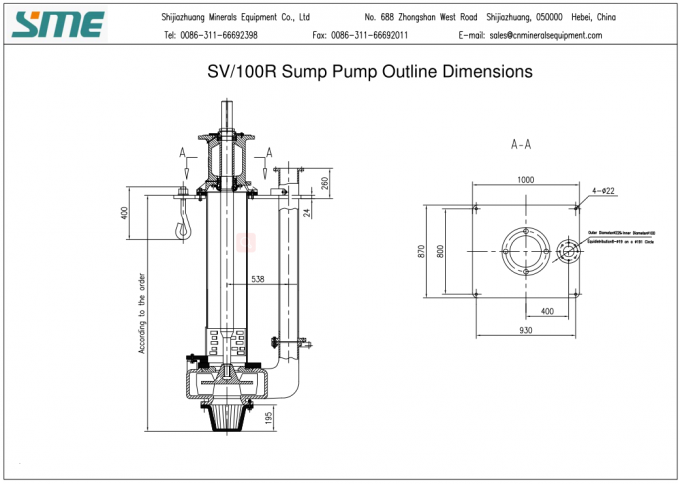

Outline Dimension Of SP-100R
