200SV-SP Vertical Slurry Pump
Email:
sales@slurrypump.co
Still deciding? Get samples first, Contact US !
View similar products
Keyword
vertical slurry pump
warman vertical slurry pump
- Product Description
-

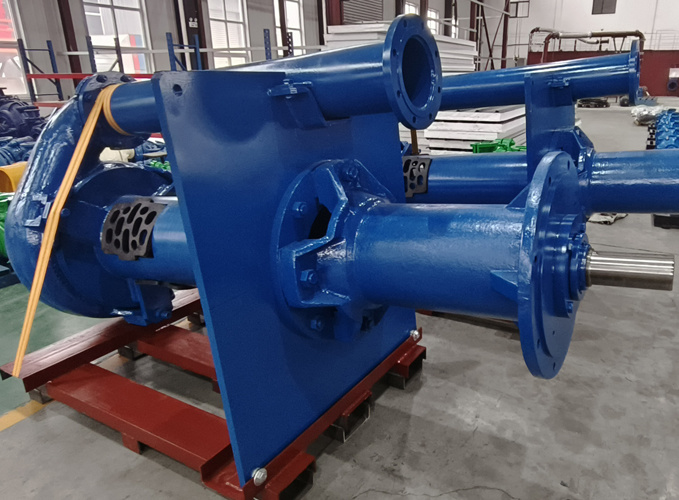

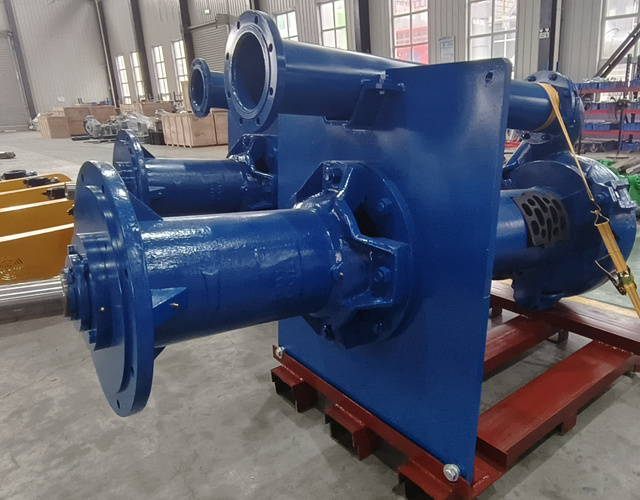

200SV-SP Vertical Slurry Pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator are available. CNSME provides Various vertical pump types apply for different conditions.
Model Matching power P(kw)
Capacity Q
(m3/h)
Head H
(m)
Speed n
(r/min)
Eff.η
(%)
Impeller dia.
(mm)
Max.particles
(mm)
Weight
(kg)
400PV-SP(R) 1.1-15 7.2-29 4-28.5 1000-2200 40 188 12 300 650PV-SP(R) 3-30 18-113 5-31.5 700-1500 60 280 15 500 100RV-SP(R) 5.5-75 40-289 5-36 500-1200 62 370 32 920 150SV-SP(R) 11-110 108-576 8.5-40 500-1000 52 450 45 1737 200SV-SP(R) 15-110 180-890 6.5-37 400-850 64 520 65 2800 250SV-SP(R) 18.5-200 261-1089 7-33.5 400-750 60 575 65 3700 300SV-SP(R) 22-200 288-1267 6-33 350-700 50 610 65 3940
200SV-SP Vertical Slurry Pump
